ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport

Brand Name : Zhuanzhi

Place of Origin : Hubei

Price : $19,800.00/units 1-2 units

Condition : New

Steering : Left

Horsepower : 150 - 250hp

Emission Standard : Euro 4

Segement : Medium-sized truck

Market Segement : Urban construction muck transportation

Engine Brand : Cummins

Fuel Type : Diesel

Engine Capacity : 4 - 6L

Cylinders : 4

Gear Box Brand : FAST

Transmission Type : Automatic

Forward Shift Number : 5

Reverse Shift Number : 1

Maximum Torque(Nm) : 1500-2000Nm

Dimensions (L x W x H) (mm) : 6850x2280x3100mm

Cargo Tank Dimension : 4200x2200x800mm

Cargo Tank length : ≤4.2m

Gross Vehicle Weight : ≤5T

Capacity (Load) : 1 - 10t

Fuel Tank Capacity : 100-200L

Drive Wheel : 4X2

Passengers : 3

Driver's Seat : Normal

Rear Camera : Camera

Cruise Control : Normal

ABS(Antilock Braking System) : Yes

ESC(Electronic Stability Control System) : Yes

Touch Screen : None

Multimedia System : Yes

Window : Manual

Air Conditioner : Automatic

After-sales Service Provided : Video technical support, Online support, Free spare parts

Color : Customer's Requirement

Horse power : 150-250hp

Overall dimension : 6530x2300x2950 mm

Cargo box size : 4200x2200x800 mm

Wheelbase : 3650 mm

Payload : 6200

Engine Powe : 96/130 kw

Displacement : 4.214L

Tire : 9.00-20

Bore x stroke : 108x115 mm

Contact Now

ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport

Dear Friend, having a nice day, thanks for your browsing on our website, i am so glad to write you. We are a professional Special Auto manufacturer and supplier with having rich experiences and professional manufacturing teams, workshops, equipment and tech teams.Have cooperation with HOWO, ISUZU, SINO TRUK, Dongfeng and so on Vehicle brands several years.
Mainly produce Fuel Tank Truck, LED advertising truck, Wrecker truck, Road sweeper, Water truck, Refrigerated truck, Garbage truck, LPG tanks, Concrete mixer truck, Cargo truck, Dump truck, Van truck, Truck mounted crane, Aerial work platform truck,Tractor truck, Semi-trailer, Bulk cement truck, Sewage suction truck, Fecal suction truck, and so on Special vehicles more than 200 kinds. Our prices are very competitive.
Product Description

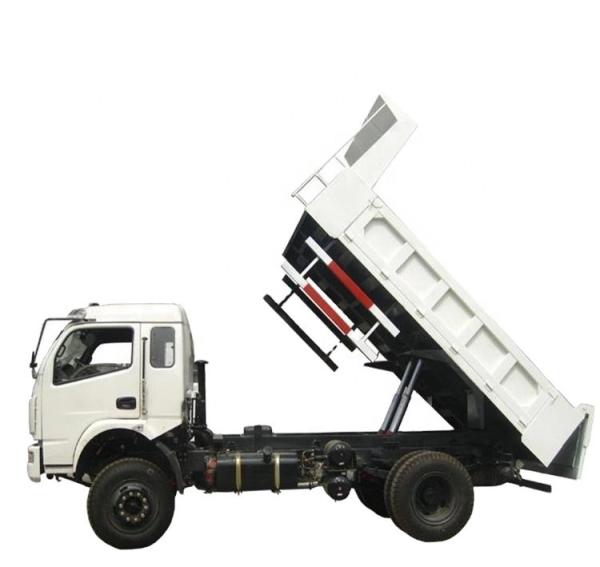

Factory cheap sale rear tilting dump truck 4x2 sand gravel dumper
A dump truck, known also as a dumper truck or tipper truck, is used for taking dumps (such as sand, gravel, or demolition waste) for construction as well as coal. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK, Australia and India the term applies to off-road construction plant only, and the road vehicle is known as a tipper lorry (UK, India), tip-truck, tip-trailer, tipper truck, or tipper (Australia and New Zealand).
Today, virtually all dump trucks operate by hydraulics and they come in a variety of configurations each designed to accomplish a specific task in the construction material supply chain.
A standard dump truck is a truck chassis with a dump body mounted to the frame. The bed is raised by a vertical hydraulic ram mounted under the front of the body, or a horizontal hydraulic ram and lever arrangement between the frame rails, and the back of the bed is hinged at the back of the truck. The tailgate can be configured to swing up on top hinges (and sometimes also to fold down on lower hinges) or it can be configured in the "High Lift Tailgate" format wherein pneumatic rams lift the gate open and up
above the dump body.
SPECIFICATION
Dimension & Weight
Overall dimension
6530x2300x2950 mm
Cargo box size
4200x2200x800 mm
Wheelbase (mm)
3650
Total weight (kg)
9500
Tare weight (kg)
3360
Payload (kg)
6200
Engine
Engine Model
YC4D130, YUCHAI ENGINE
Engine Type
4 cylinder in-line, Water, cooled, turbocharge
Fuel Type
Diesel
Engine Power (kW/HP)
96/130
Related Speed (rpm)
2800
Max torque (N.m/rpm)
420/1400-1800
Displacement (L)
4.214
Fuel consumption (L/100km)
10
Emission
Euro 3
Bore x stroke (mm)
108x115
Minimum fuel consumption rate at full load
205g/kW.h
Chassis system
Transmission
5 speed, Manuel
Suspension Type
Leaf spring
Clutch
430mm single sheet dry-type clutch
Steering
Power steering
Tyre
9.00-20
Detailed Images
Cab Introduction ---Flat head cab
The length and wheelbase of the bus are short, which can reduce the tare weight of bus and improve maneuverability. Broad vision. The flat-top cab has gradually become the mainstream of truck cabs.
The structure of the cab mainly includes: the hollow shell of the cab, doors, windows, interior and exterior trim parts,workbenches and body accessories, seats, and ventilation, heating, air conditioning, and air conditioning devices.
Steering Wheel Dongfeng 5-speed DF6S900 transmission
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
Dump truck maintenance skills
1. Check the protective coating on the underbody.
2. Replace the fuel filter and spark plug in time 3. Check the V-ribbed belt and
replace it if necessary.
4. Check whether the engine timing belt is cracked or damaged, and replace it if necessary.
5. Check whether the engine oil pan bolts are loose and tighten them according to the specified torque if necessary.
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport

6. Regularly check whether the brake hose is aging or damaged, whether the brake hard tube is damaged or corroded, and whether the
connections are leaking.
7. Regularly check whether the connections of the fuel system are aging, damaged, loose or worn.
8. Check whether the rubber parts and rubber bearings connecting the front and rear frames to the body are damaged and whether they are
permanently deformed.
9. Regularly check the left and right control arm hinges and rear axle hinges for damage or failure.
Transfer dump truck
Another configuration is called a triple transfer train, consisting of a "B" and "C" box. These are common on Nevada and Utah Highways, but not in California. Depending on the axle arrangement, a triple transfer can haul up to 129,000 kilograms (284,000pounds) with a special permit in certain some place.
The second aggregate container on the trailer ("B" box), is powered by an electric motor, a pneumatic motor or a hydraulic line. It rolls on small wheels, riding on rails from the trailer's frame into the empty main dump container ("A" box). This maximizes payload capacity without sacrificing the maneuverability of the standard dump truck. Transfer dump trucks are typically seen in some area due to the peculiar weight restrictions on highways there.
Most standard dump trucks have one front steering axle and one (4x2 4-wheeler)) or two (6x4 6-wheeler) rear axles which typically have dual wheels on each side. Tandem rear axles are almost always powered, front steering axles are also sometimes powered (4x4,6x6). Unpowered axles are sometimes used to support extra weight. Most unpowered rear axles can be raised off the ground to minimize wear when the truck is empty or lightly loaded, and are commonly called "lift axles".
European Union heavy trucks often have two steering axles. Dump truck configurations are two, three and four axles. The four-axle eight wheeler has two steering axles at the front and two powered axles at the rear and is limited to 32 metric tons (35 short tons; 31 long tons) gross weight in most EU countries. The largest of the standard European dump trucks is commonly called a "centipede" and has seven axles. The front axle is the steering axle, the rear two axles are powered, and the remaining four are lift axles.
The shorter wheelbase of a standard dump truck often makes it more maneuverable than the higher capacity semi-trailer dump trucks.
Related Products
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport

Company Introduction
Ricalt Automobile Technology (Hubei) Co., Ltdestablished on March 3, 2015, is located at No. 40 dongfeng Avenue, Maojian District, Shiyan City, Hubei Province. The truck commercial vehicle industry belt formed by relying on Dongfeng Motor Company.
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
Factory Show
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
Packing&Shipping
Before depareture all trucks will be checked and flushed carefully. Generally . We deliver the vehicles by Ro-Ro vessel or opening
containers .bulk cargo ship as well .Like the pictures :
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport
Our business scope
We mainly produce all kinds of special purpose trucks as per the requests of our buyer . Including : Water truck .Fuel tank truck.Truck mounted crane .MIxer truck. Dump truck. Garbage truck .etc .etc.
ABS Equipped 4X2 Rear Tipping Dump Truck For Heavy Duty Sand And Gravel Transport

FAQ

1. Are you a factory of vehicles ?
Sure. We are a notable factory in our local city --------Shiyan .A truck city of China .

2.What kind of payment could be acceptable ?
Generally we accept T/T .LC .And westunion.

3. How about the delivery time ?
Generally the preparation need about 30 working days or even less. Buyers could inquiry on-line.

4. Where is your factory's location ?
We are in Liuliping industrial park, Shiyan city ,Hubei province . (near the airport).

5.How about the MOQ ?
The Minimum Order Quantity will be 1 unit .
