EQ2070 Dongfeng 4 X 4 2.5 Ton Diesel Off Road Truck For Military Applications

  • 1
  • 2
  • 3

Brand Name : Dongfeng

Model Number : EQ2070

Certification : CCC

Place of Origin : China

MOQ : 1 Unit

Payment Terms : T/T,L/C

Supply Ability : 2000 units per year

Delivery Time : 35 working days

Packaging Details : In Nude

Drive type : 4x4

Fuel type : Diesel

Engine type : 160HP

Dimension : 6500x2470x2825mm

GVW : 8510kg

Curb weight : 5800kg

Cargo box size : 3545x2294x550mm

Wheelbase : 3600mm

Transmission : 6 speed,manual

Tyre : 12.5R20

Cab : Half a row

Contact Now

EQ2070 Dongfeng 4 X 4 2.5 Ton Diesel Off Road Truck For Military Applications

EQ2070 Parameters Specifications

Description Military chassis
Drive type 4x4,LHD
Cab Flat roof,single row
Passenger 3 persons
Wheelbase 3600(mm)
Clutch Φ350mm,Single disc clutch
Gearbox 6 Speed,manual
Transfer case Mechanical, two gears
Front axle(Empty load/full load) 3425/2575
Rear axle(Empty load/full load) 3805/4905
Oil tank 145(L)
Tire 12.5R20,with one spare tire
Engine model EQB160-22,In-line six cylinder water-cooled intercooler diesel engine
Engine power 118(kW)/160(hp)
Engine brand CUMMINS
Fuel type diesel
Displacement 5900(ml)
Approach angle/departure angle 35/33(°)
Front /rear suspension 1400/1430(mm)
GVW 8710(kg)
Max load capacity 2500(kg)
Max tractive mass 2500(kg)
Max speed 91(km/h)
Min stable speed 3(km/h)
Max gradient 60%
Slope standing capacity 40%
Min ground clearance 305(mm)
Min turning radius 7.5(m)
Max vertical obstacle clearance height 550(mm)
Max trench crossing width 700(mm)
Max wading depth 1000(mm)
Max range 800(km)

EQ2070 Dongfeng 4 X 4 2.5 Ton Diesel Off Road Truck For Military Applications

Performance characteristics
Dongfeng Cummins 160/190 horsepower diesel engine;
12.5R20 tubeless off-road tires;
Central inflation and deflation system, which can be divided into deflation of front and rear axle tires;
Six-speed mechanical transmission;
The rear axle is equipped with a self-locking differential lock, which automatically locks the differential when the left and right adhesion differs greatly.

EQ2070 Dongfeng 4 X 4 2.5 Ton Diesel Off Road Truck For Military Applications


Product Tags:

4 X 4 Diesel Off Road Truck



2.5 Ton Diesel Off Road Truck



EQ2070 heavy off road trucks


Quality EQ2070 Dongfeng 4 X 4 2.5 Ton Diesel Off Road Truck For Military Applications wholesale

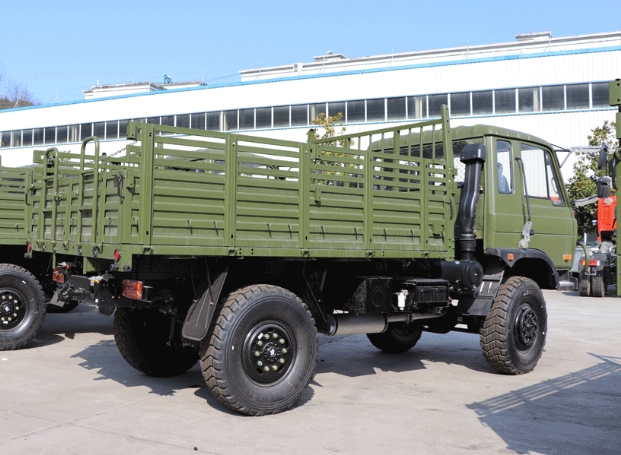

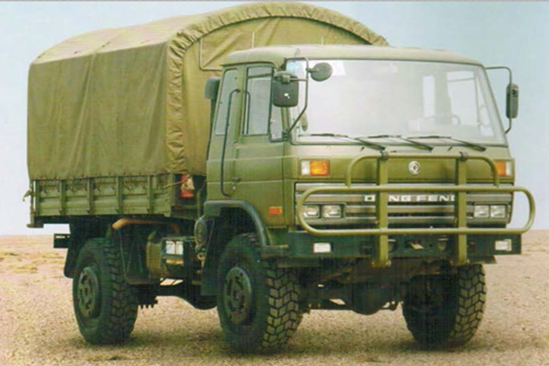

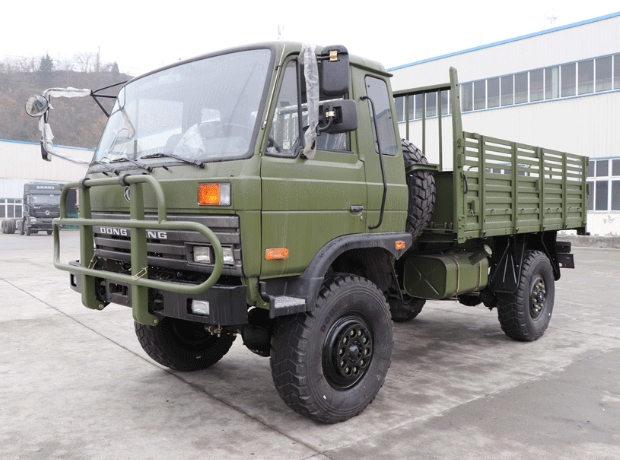

EQ2070 Dongfeng 4 X 4 2.5 Ton Diesel Off Road Truck For Military Applications Images
